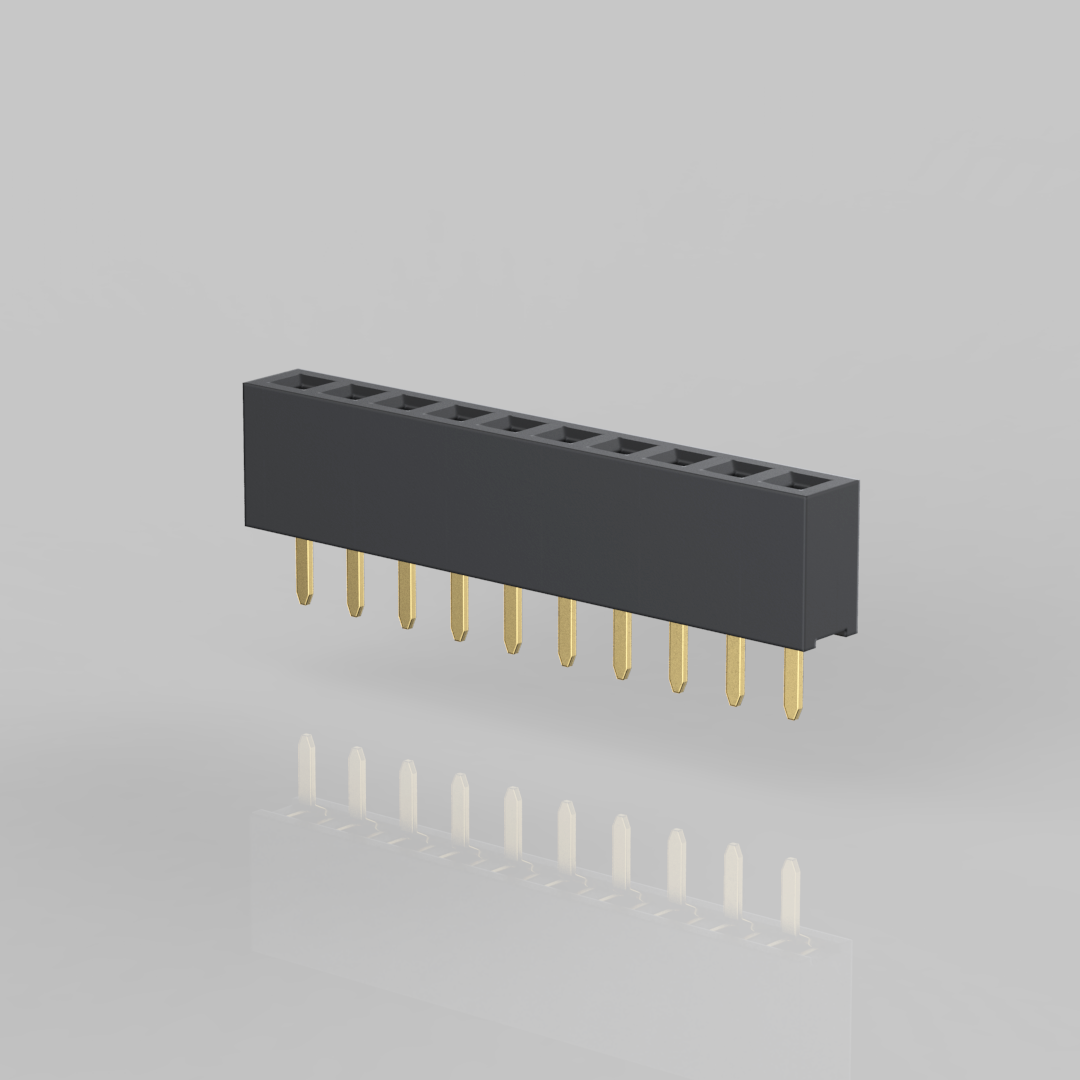

F301-SG_-D024-XX 2.0 Female Header 180°單排
SPECIFICATIONS
- Current Rating: 2 Amp
- Insulator Resistance: 3000 Megohms Min.
- Contact Resistance: 20 m ohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃ ～ +105℃
- Contact Material: Phosphor Bronze
- Insulator Material: High Temperature, Thermoplastic. UL 94V-0
- Finish: Gold Plated
- Standard: Gold Flash all over
