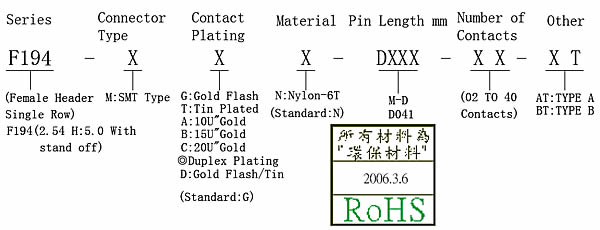

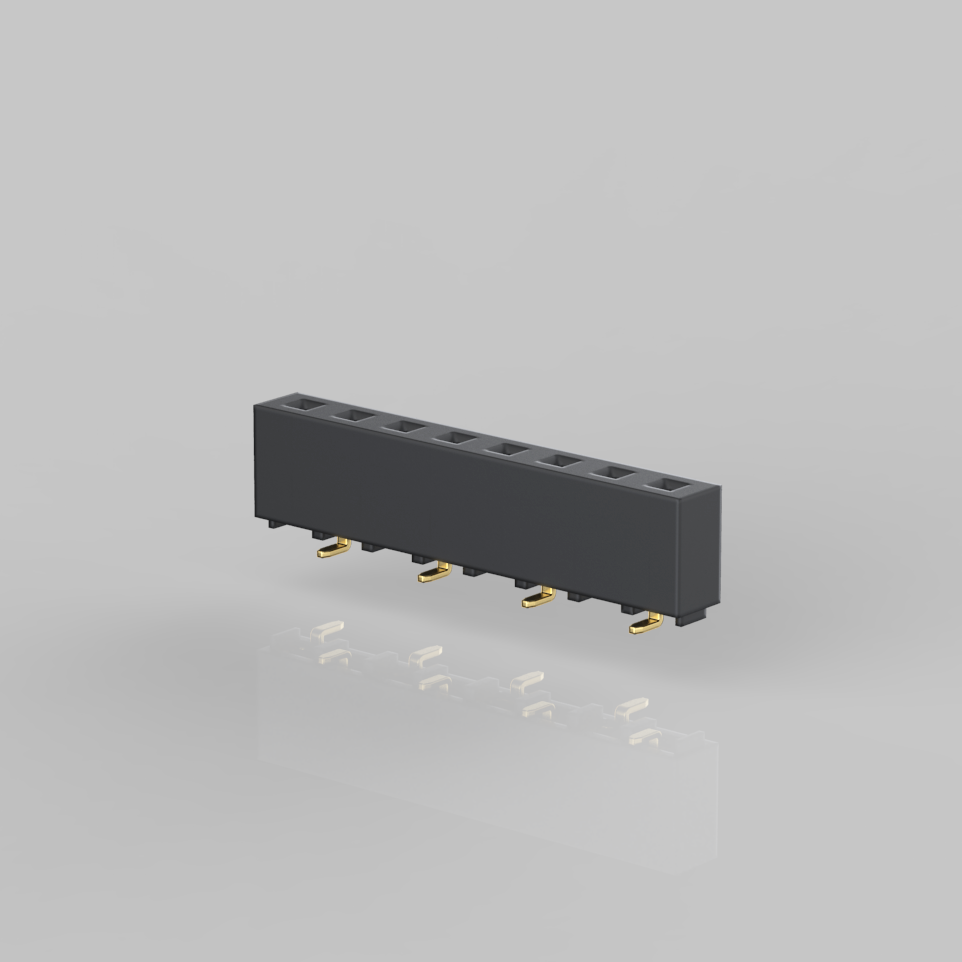

F194-MGN-D041-XX-XT 2.54 Female Header SMT單排
SPECIFICATIONS
- Current rating: 3Amp
- Insulator resistance: 5000 Megohms Min.
- Dielectric Withstanding: AC 1000 V
- Operating Temperature: -40°C~+105°C
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester, UL 94V-0
- Standard: Nylon-6T
- Finish: Tin, Gold or Duplex Plated
- Contact Plated: Full Gold,Full Tin, Selective Plated
