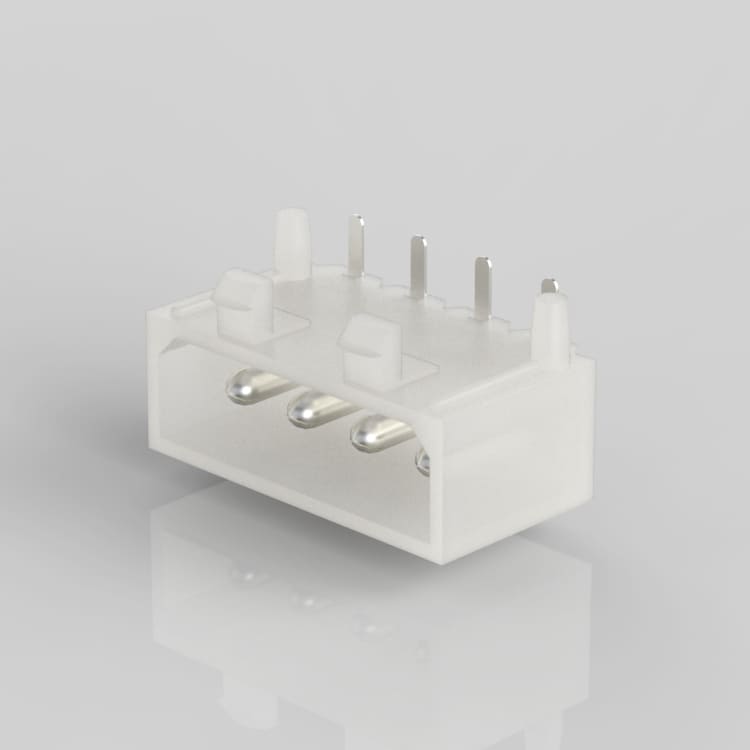

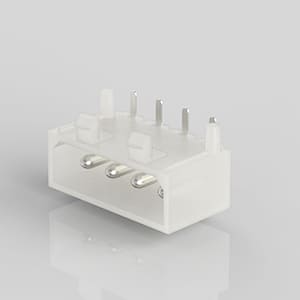

C4-1114-04WR

SPECIFICATIONS

• Current rating: 6.5A
• Voltage rating: 250V AC (R.M.S.)
• Contact resistance: 10mΩ Max.
• Insulation resistance: 500MΩ Min.
• Dielectric withstanding voltage: 1500V AC/minute
• Ambient temperature range: -40°C~+105°C

Features

• Plastic: UL94V-2 nylon 66
• Pin: Tin-plated phosphor bronze, 0.25mm thickness
