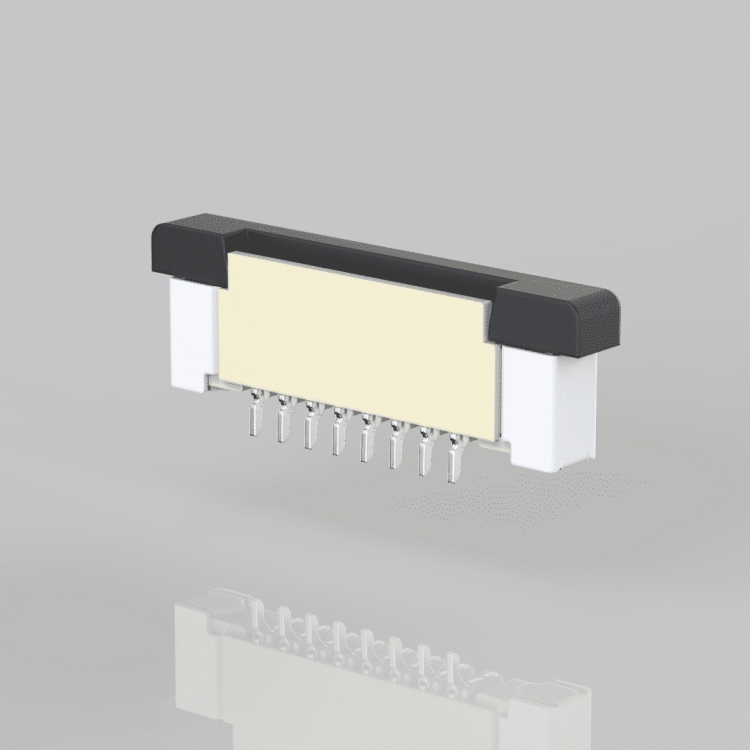

FPC220L0XX-CTX-CF1337
SPECIFICATIONS
Electrical Characteristics:- Current rating: 0.5A AC/DC
- Voltage rating : 50V AC/DC
- Temperature range : -25°C~+85°C
- Withstand Voltage : 500V AC/Minute
- Contact Resistance : 20m Ω Max.
- Insulation resistance : 800M Ω Min.
- Relative Humidity : 93%+40°C
Material Description:
- Terminal : Phosphor Bronze Tin-plated
- Fitting Nail : Brass Tin-plated
- Housing : LCP UL94V-0, Color : Natural
- Slider : LCP UL94V-0, Color : Black
