Wire to Board Connector

2.50mm(0.0984")Series

CXA 250 Series
SPECIFICATIONS
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 10mΩ/Max.
- Insulation resistance: 500MΩ/Min.
- Withstanding voltage: 1500V AC/min.
- Wire Range: AWG #20 to #28

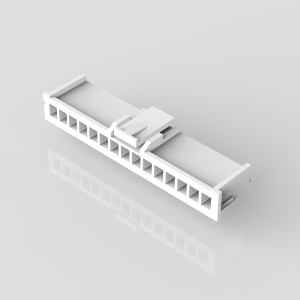

CXA-W250-XX

Inquiry Info.

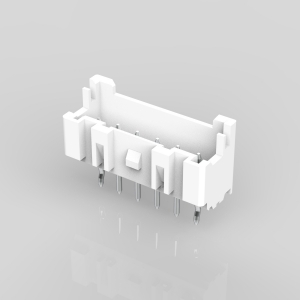

CXA-H250-XX-CF137

Inquiry Info. PDF

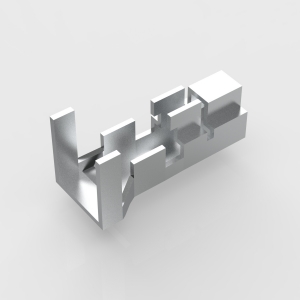

CXA-T250-CF137

Inquiry Info. PDF

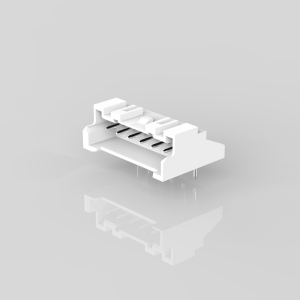

CXA-W250R-XX

Inquiry Info. PDF

Total of 4 results
